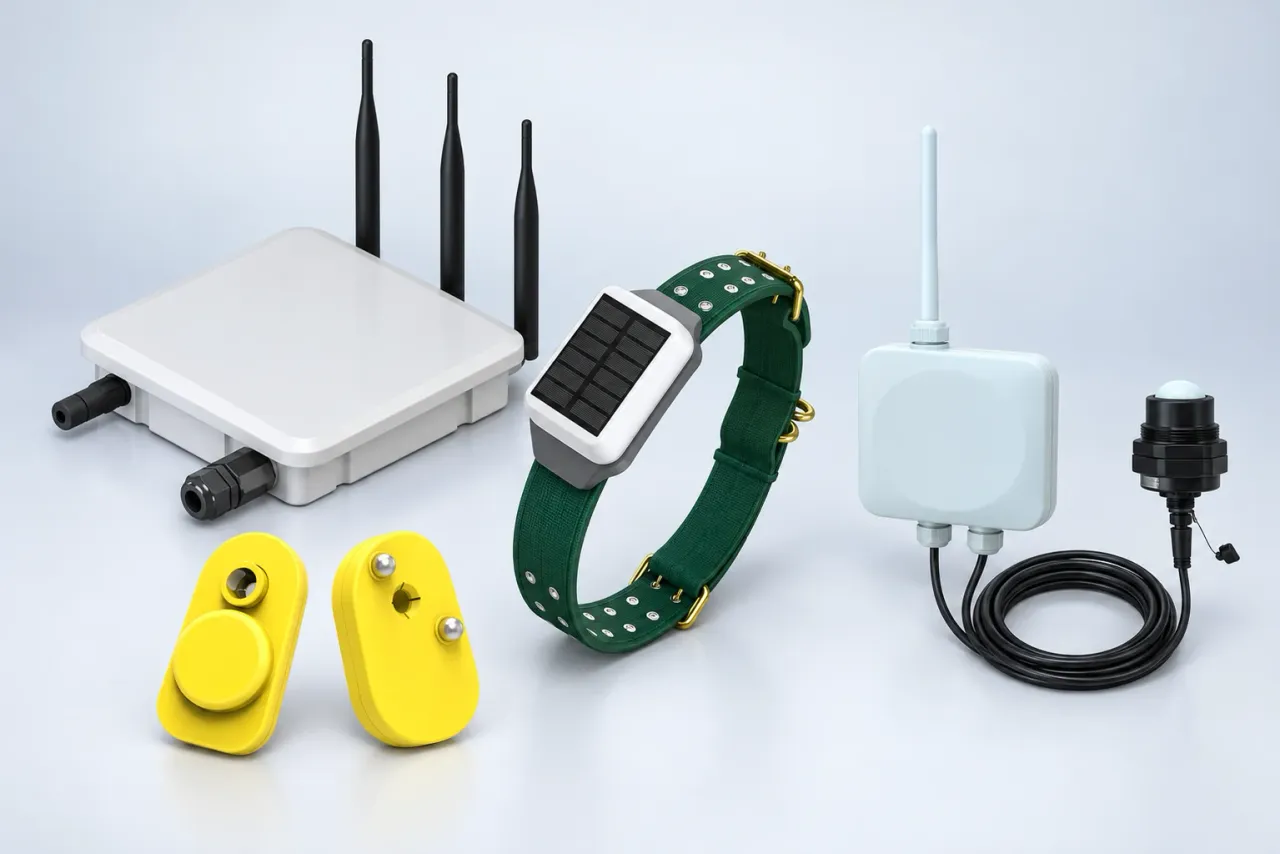

Sensing Infrastructure
Purpose-built hardware designed and manufactured in-house. Every device is engineered for multi-year field deployment, extreme weather resistance, and seamless integration with the Herdwize platform.
Herdwize hardware is not a standalone product — it is the sensing layer of an integrated intelligence platform. Each device feeds data into the same AI engine, the same analytics dashboard, and the same alert system.
Smart Eartag
The primary health and behavior sensing device. Attached using standard ear tag applicators, it monitors body temperature, activity patterns, and rumination behavior continuously.
Specifications
- Dimensions
- 38mm × 32mm × 18mm
- Weight
- 28g
- Battery
- CR2477 lithium coin cell — 5+ years
- Connectivity
- LoRaWAN 868/915 MHz
- Range
- Up to 10 km (line of sight)
- Sensors
- Temperature (±0.1°C), 3-axis accelerometer, light sensor
- Ip Rating
- IP67
- Operating Temp
- -40°C to +85°C
- Material
- UV-stabilized food-grade polymer
Key Features
- Continuous body temperature monitoring with ±0.1°C accuracy
- Activity classification: rumination, feeding, resting, walking
- Estrus detection through behavioral pattern analysis
- 5+ year battery life with zero maintenance
- 28g lightweight design — zero behavioral impact on tagged animals
- Compatible with cattle, sheep, goats, and poultry

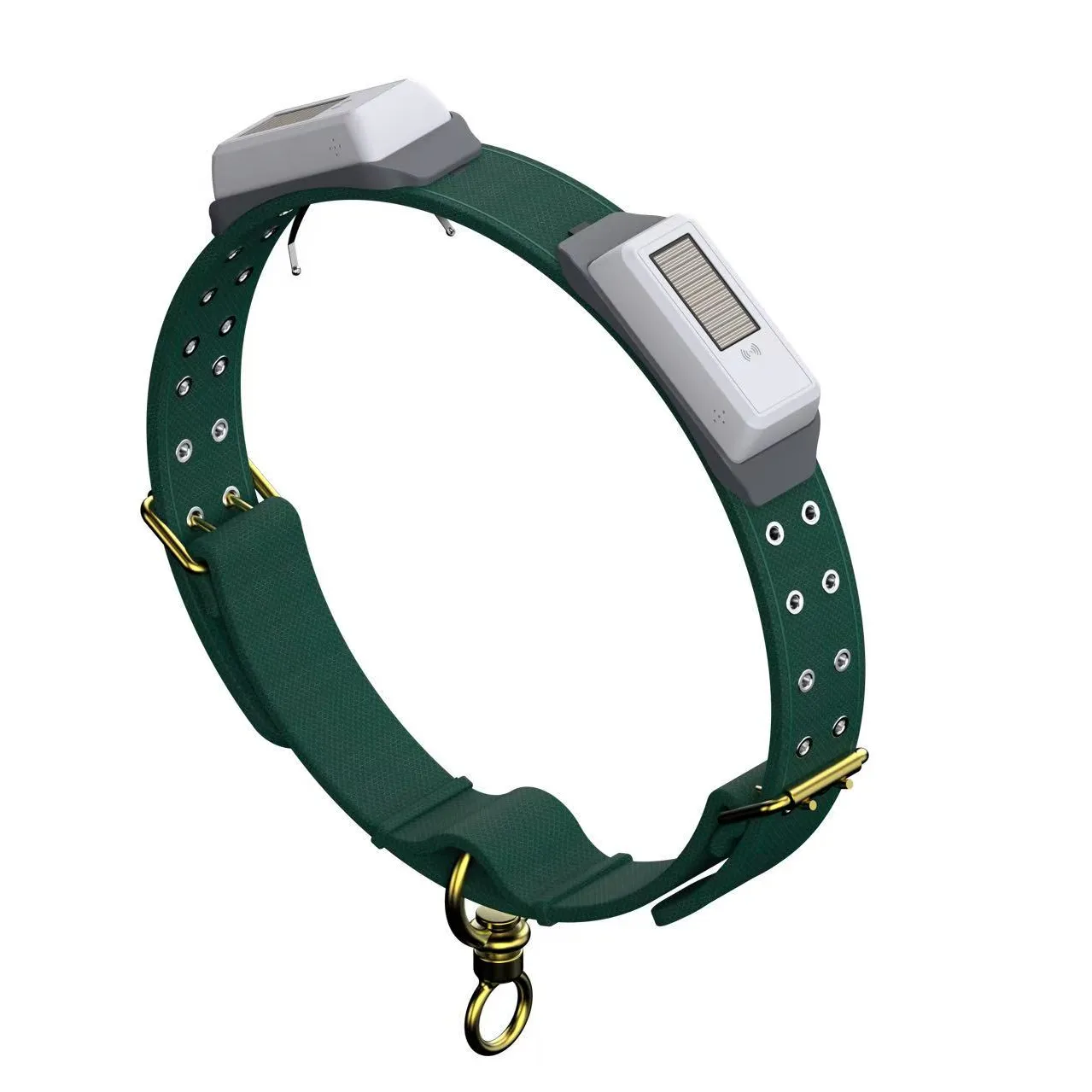

Smart Collar
GPS-enabled tracking collar for real-time location monitoring, geofencing, and movement pattern analysis. Designed for cattle on extensive grazing operations.
Specifications
- Weight
- 340g
- Battery
- Rechargeable Li-Po — 2+ years (solar-assisted)
- Connectivity
- LoRaWAN + GPS (L1/L5)
- Range
- Up to 10 km (LoRaWAN)
- Sensors
- GPS (meter-level), 3-axis accelerometer, temperature
- Ip Rating
- IP67
- Operating Temp
- -30°C to +70°C
- Material
- Reinforced UV-resistant polymer with stainless steel buckle
Key Features
- Real-time GPS location with meter-level precision
- Configurable geofencing with instant breach alerts
- Movement history and grazing pattern analysis
- Anti-theft alert with abnormal movement detection
- Solar-assisted charging for extended battery life
- Designed for cattle — adjustable neck circumference
Smart LED Location Tag
Visual identification tag with programmable LED indicators for field-level animal identification. Integrates with the platform to display color-coded status — allowing field staff to visually identify animals requiring attention without checking a device.
Specifications
- Weight
- 35g
- Battery
- CR2477 lithium coin cell — 3+ years
- Connectivity
- LoRaWAN 868/915 MHz
- Display
- Multi-color LED (red, green, amber, blue)
- Ip Rating
- IP67
- Operating Temp
- -40°C to +85°C
- Material
- UV-stabilized food-grade polymer
Key Features
- Color-coded LED status visible at 50+ meters in daylight
- Platform-driven color assignment: red (urgent), amber (attention), green (clear)
- Night-mode pulsing for low-light identification
- 3+ year battery life with adaptive LED duty cycle
- Standard ear tag applicator attachment
- Integrates with Smart Eartag health alerts
LoRaWAN Gateway
The network hub that connects all Herdwize devices on the farm. Each gateway provides 10 km coverage, supports 1,000+ devices, and performs edge computing for local alert generation.
Specifications
- Connectivity
- LoRaWAN 868/915 MHz (8-channel)
- Backhaul
- Ethernet, Wi-Fi, or 4G cellular
- Range
- 10 km (line of sight), 3-5 km typical
- Capacity
- 1,000+ sensor nodes
- Power
- 12V DC / Solar panel option
- Processing
- ARM Cortex-A53, 1GB RAM
- Storage
- 32GB local data buffer (72+ hours)
- Ip Rating
- IP65
- Operating Temp
- -30°C to +60°C
Key Features
- 10 km coverage radius per gateway
- Edge processing for local alert generation
- 72-hour data buffering during connectivity loss
- Mesh topology support for multi-gateway deployments
- Solar power option for remote installations
- AES-128 encryption at network and application layers
- Over-the-air firmware updates
